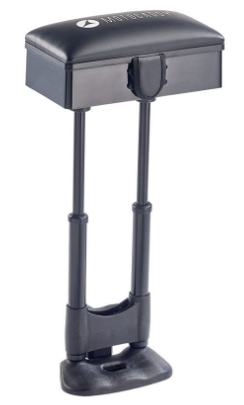

The M-Series Deluxe Seat offers a comfortable padded seat when you want to take the strain off your feet on the course.
FEATURES:
- Comfortable padded seat
- Spring-loaded mechanism
- Spacious internal storage
- Easy fitting and removal
- Compatible with 28V M-Series & 28V S-Series
SPECIFICATIONS:
Maximum weight capacity 100kg/220lb.
Fitting Instructions
- The Seat will arrive in two parts. Attach the padded Seat top to the twin-tubed section so that the Seat overhang aligns with the feet
- Insert the nuts and bolts in position and secure using the Allen key provided
- Insert the Seat Bar into the housing on the RIGHT* underside of the trolley (from operating perspective)
- There should be roughly the same amount of tube visible on both sides of the housing
- Secure the Seat Bar within the housing by fastening the two bolts provided with the trolley
- Slot the legs of the Seat onto the end of the Seat Bar

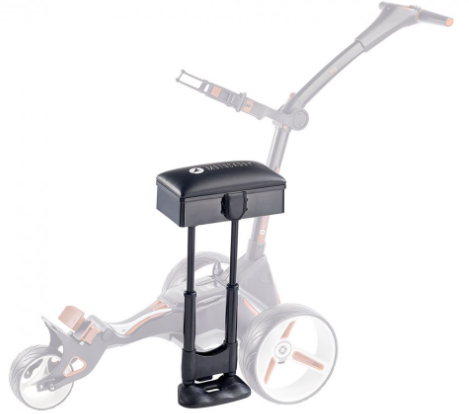

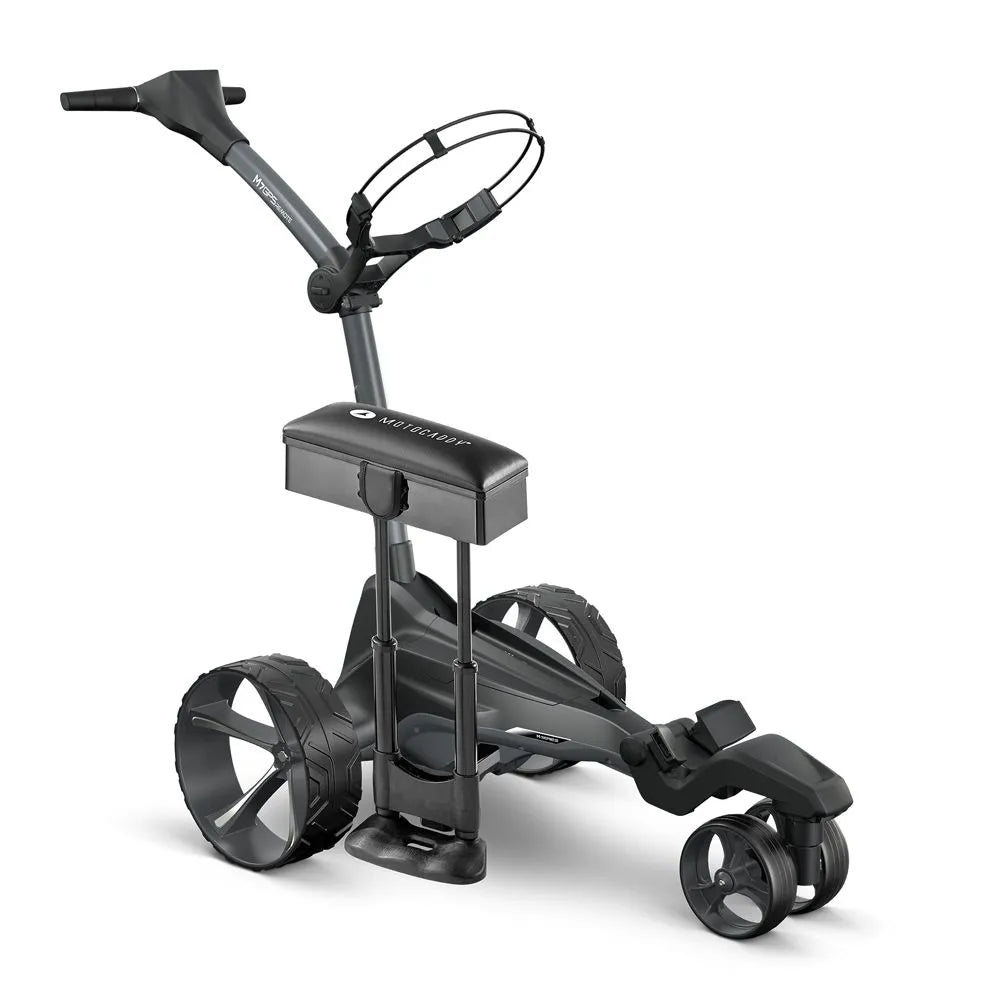

- The correctly attached Seat should look like the above image
