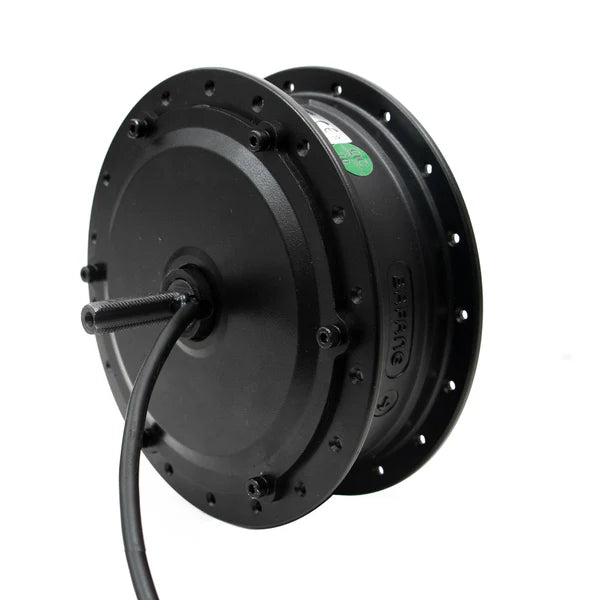

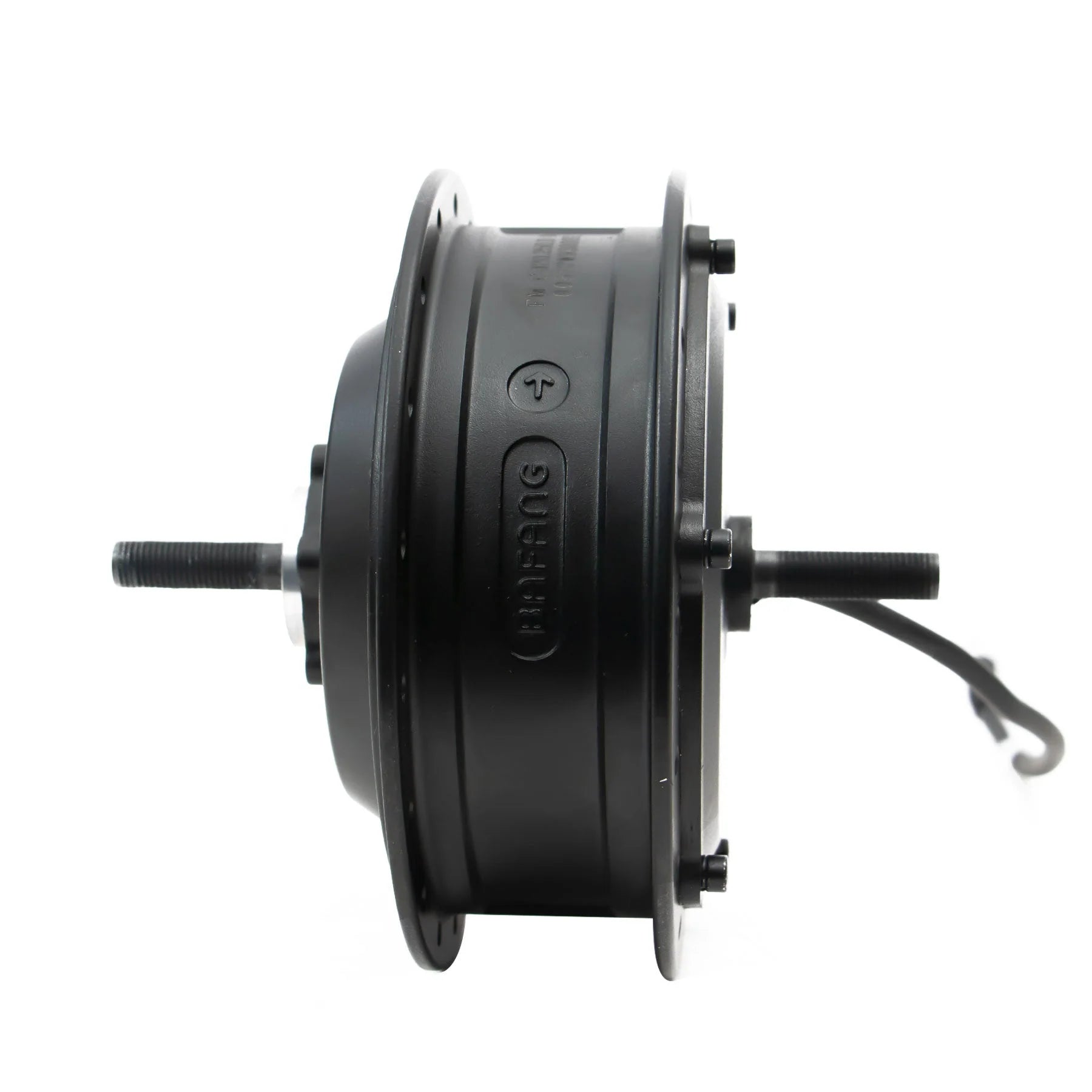

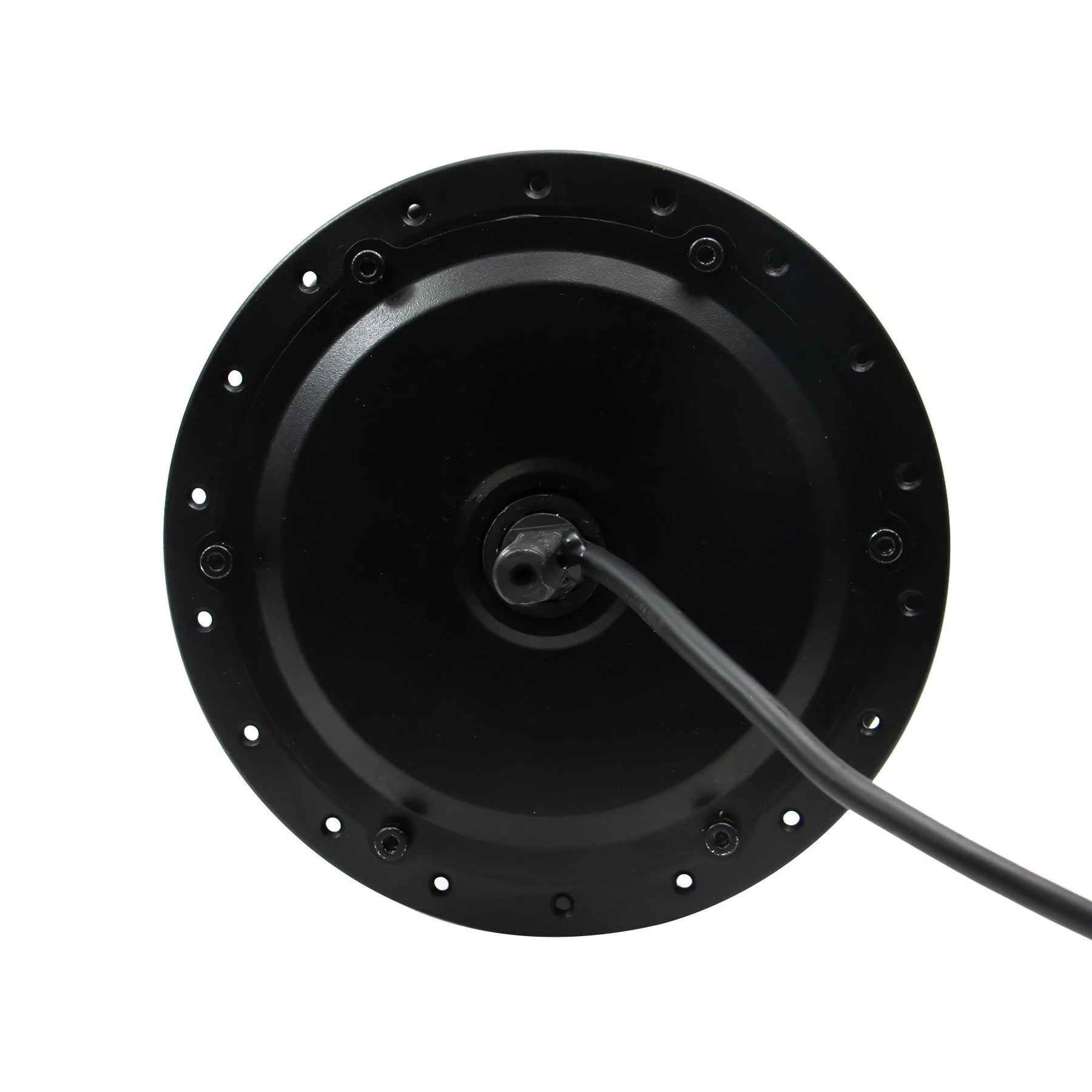

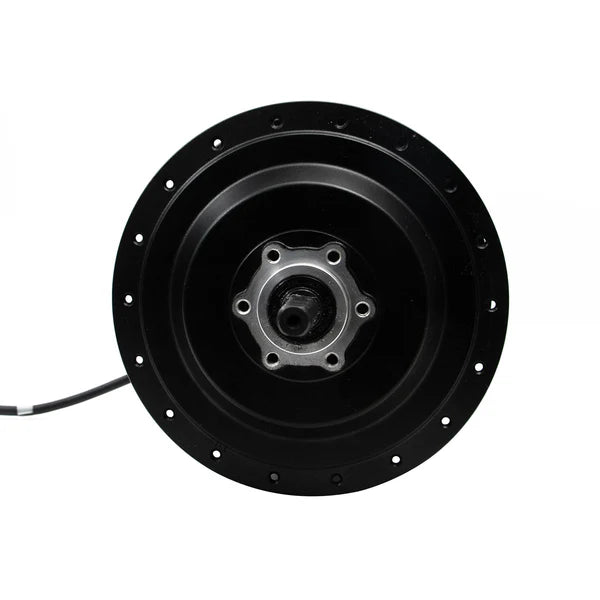

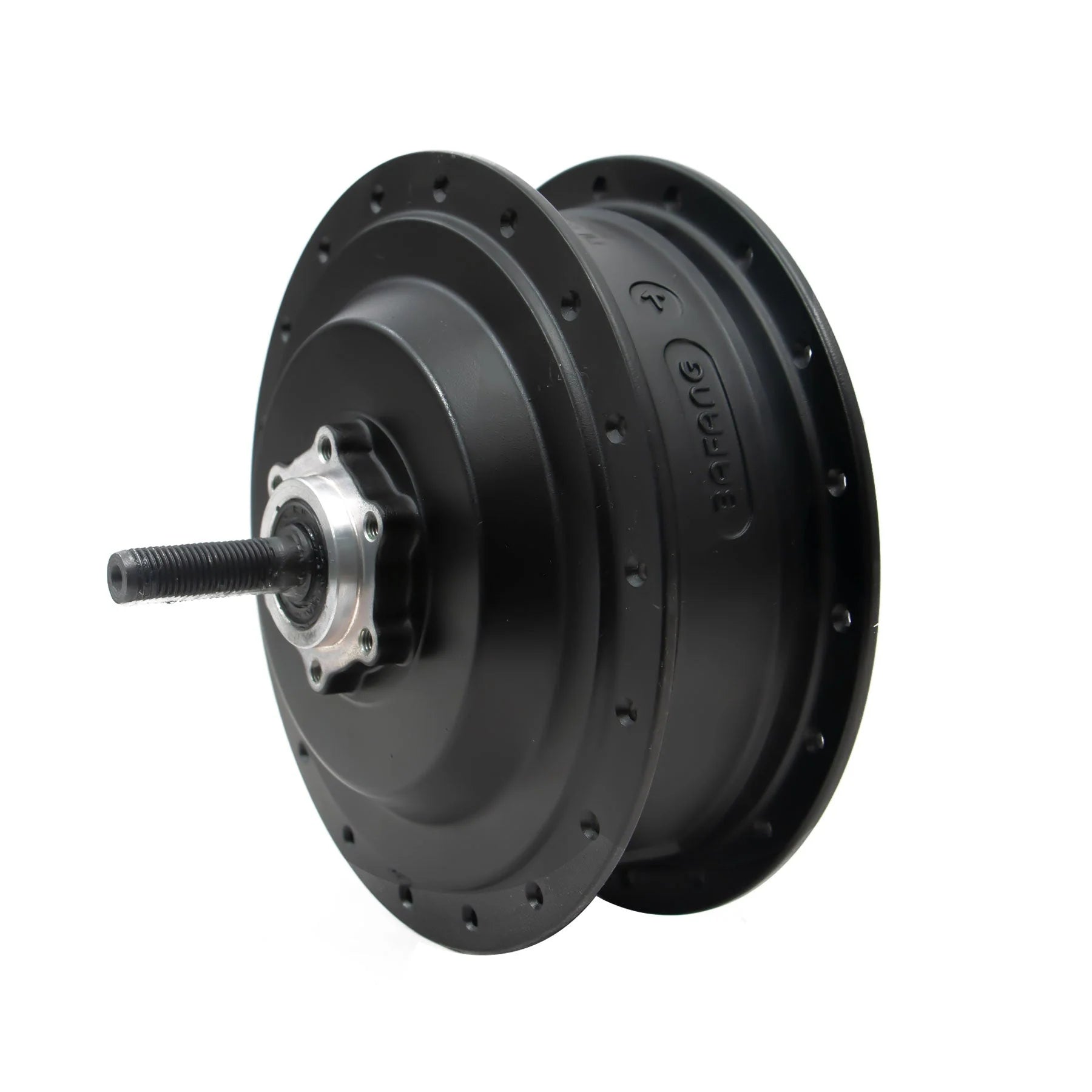

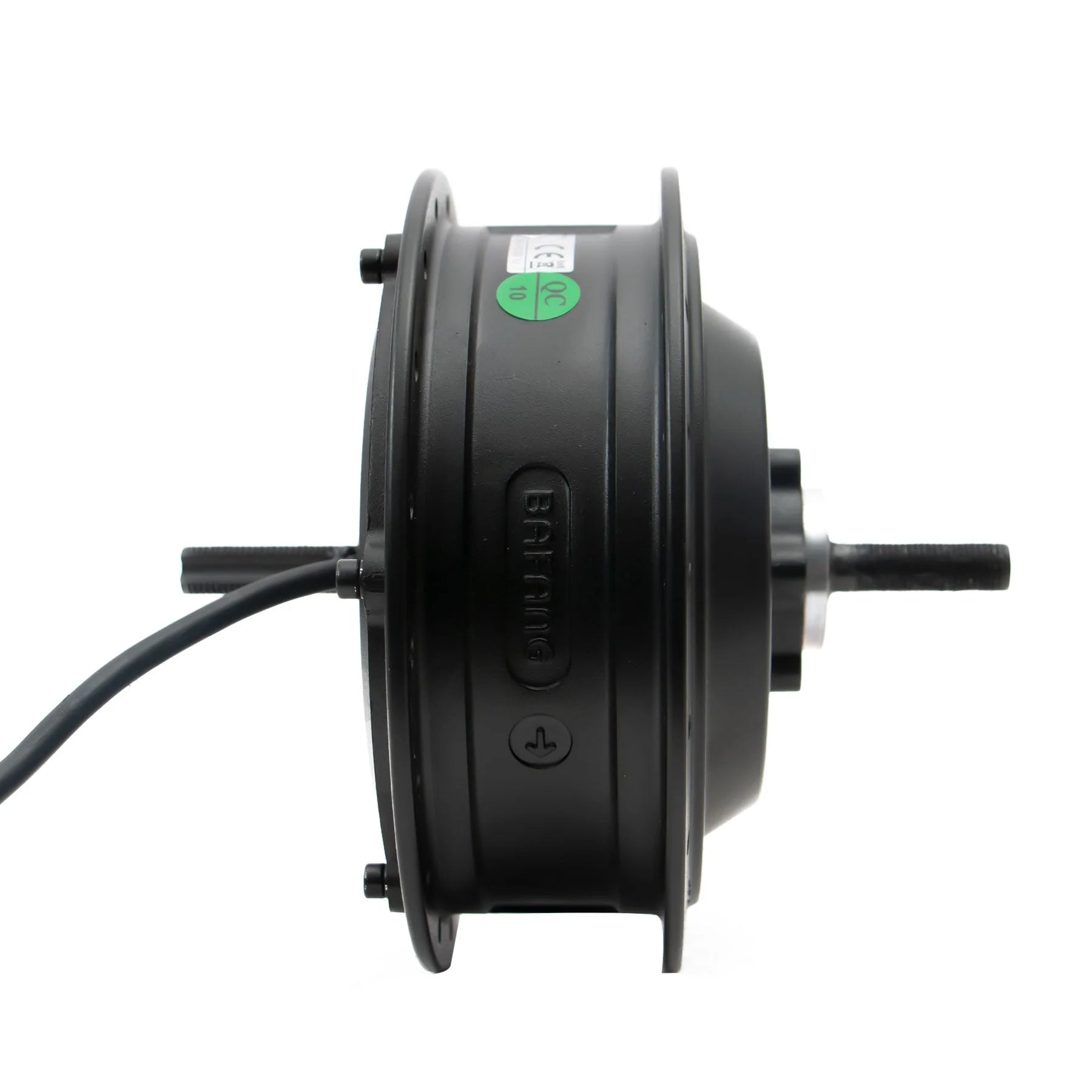

BAFANG 48V500W G020 Brushless Front Geared Hub Motor

Technical Specifications

• Model: FM G020.500.D

• Voltage: 48V

• Rated Power: 500W

• Maximum Torque: Up to 65 Nm

• Motor Type: Brushless geared front hub motor

• Efficiency: ≥80%

• Dropout Width (OLD): 100mm (front)

• Brake Compatibility: Disc brake (EU) / V-brake (US)

• Spoke Holes: 36 holes, suitable for 13G spokes

• Waterproof Rating: IPX5

• Weight: Approximately 3.3 kg

• Top Speed: Up to 40 km/h (25 mph) depending on wheel size and conditions

• Wheel Size Compatibility: 20", 24", 26", 27.5", 28", 29", and 700C



  Key Features

  • High Torque Output: Delivers up to 65 Nm of torque, providing strong acceleration and climbing capabilities.

  • Efficient Performance: With an efficiency rating of ≥80%, it ensures optimal energy utilization and extended battery life.

  • Versatile Compatibility: Designed to fit standard 100mm front dropouts and compatible with various wheel sizes, making it suitable for a wide range of bicycle frames.

  • Durable Construction: The brushless geared design reduces maintenance needs and increases the motor's lifespan, providing reliable performance over time.

  • Weather-Resistant: With an IPX5 waterproof rating, it can withstand various weather conditions, ensuring durability and longevity.




• This motor is ideal for riders seeking a balance between power and efficiency in their e-bike setup. Its compatibility with various wheel sizes and standard front dropouts makes it a versatile choice for different bicycle types.
