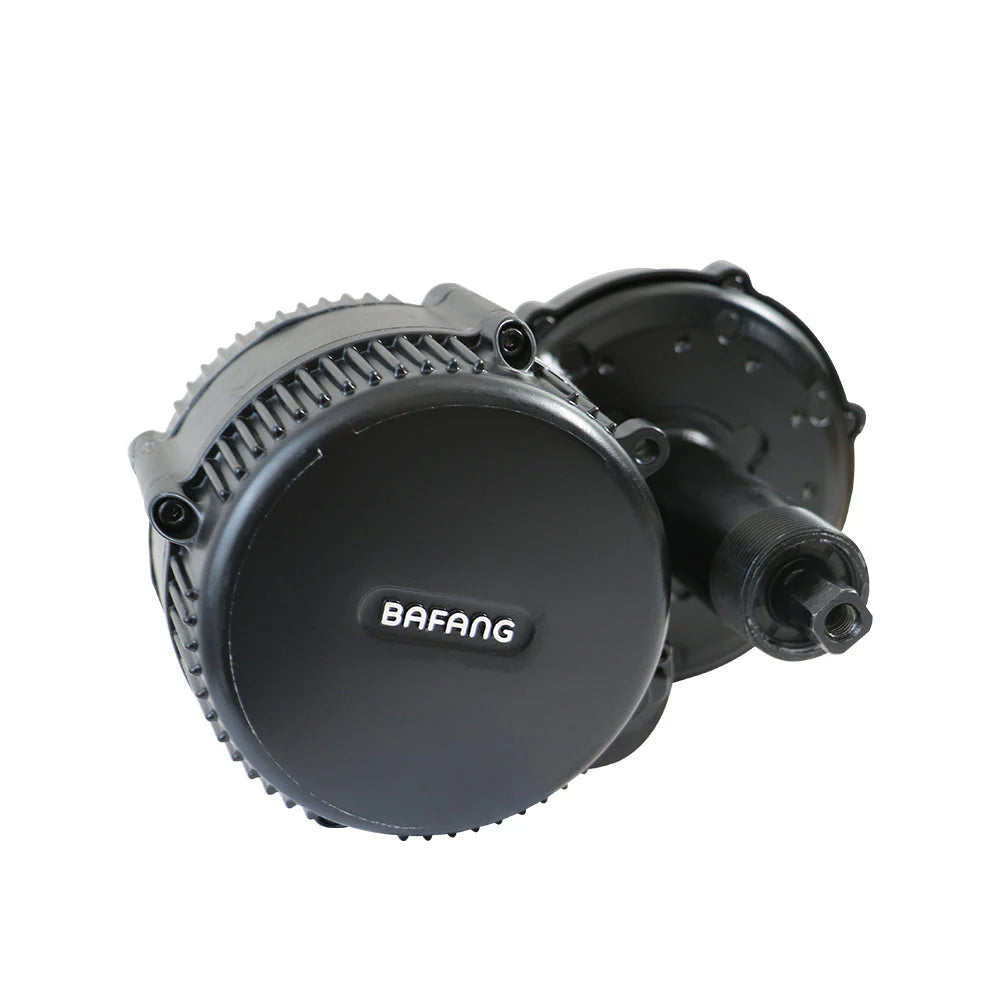

BAFANG BBS01 Mid-Drive Motor | 36V250W | 36V350W
BAFANG BBS01 Mid-Drive Motor | 36V250W | 36V350W
Couldn't load pickup availability
Technical Specifications
| Specification | 36V 250W Variant | 36V 350W Variant |
|---|---|---|
| Model | BBS01 | BBS01 |
| Voltage | 36V | 36V |
| Rated Power | 250W | 350W |
| Maximum Torque | Up to 80 Nm | Up to 80 Nm |
| Reduction Ratio | 1:21.9 | 1:21.9 |
| Motor Type | Brushless geared mid-drive | Brushless geared mid-drive |
| Weight | Approximately 3.9 kg | Approximately 3.9 kg |
| Efficiency | ≥80% | ≥80% |
| Bottom Bracket Size | 68 mm | 68 mm |
| Controller | Integrated, 36V, up to 25A | Integrated, 36V, up to 25A |
| Speed Sensor | Integrated PAS (Pedal Assist Sensor) | Integrated PAS (Pedal Assist Sensor) |
| Brake Compatibility | Compatible with e-brake levers | Compatible with e-brake levers |
| Display Compatibility | Supports various BAFANG displays | Supports various BAFANG displays |
| Light Output | 6V (up to 500mA) | 6V (up to 500mA) |
Key Features
-
Natural Riding Experience: The mid-drive design offers a balanced weight distribution and utilizes the bike's gears for efficient power delivery.
-
High Torque Output: With up to 80 Nm of torque, the BBS01 provides strong climbing capabilities and quick acceleration.
-
Integrated Components: The motor includes an integrated controller and pedal assist sensor, simplifying installation and reducing clutter.
-
Versatile Compatibility: Suitable for various bike types, including mountain bikes, road bikes, and commuter bikes with a standard 68 mm bottom bracket.
-
Customizable Display Options: Compatible with a range of BAFANG displays, allowing riders to choose their preferred interface.
The BAFANG BBS01 is an excellent choice for riders seeking to convert their traditional bicycles into efficient electric bikes. Its combination of power, efficiency, and ease of installation makes it a popular option among e-bike enthusiasts.
