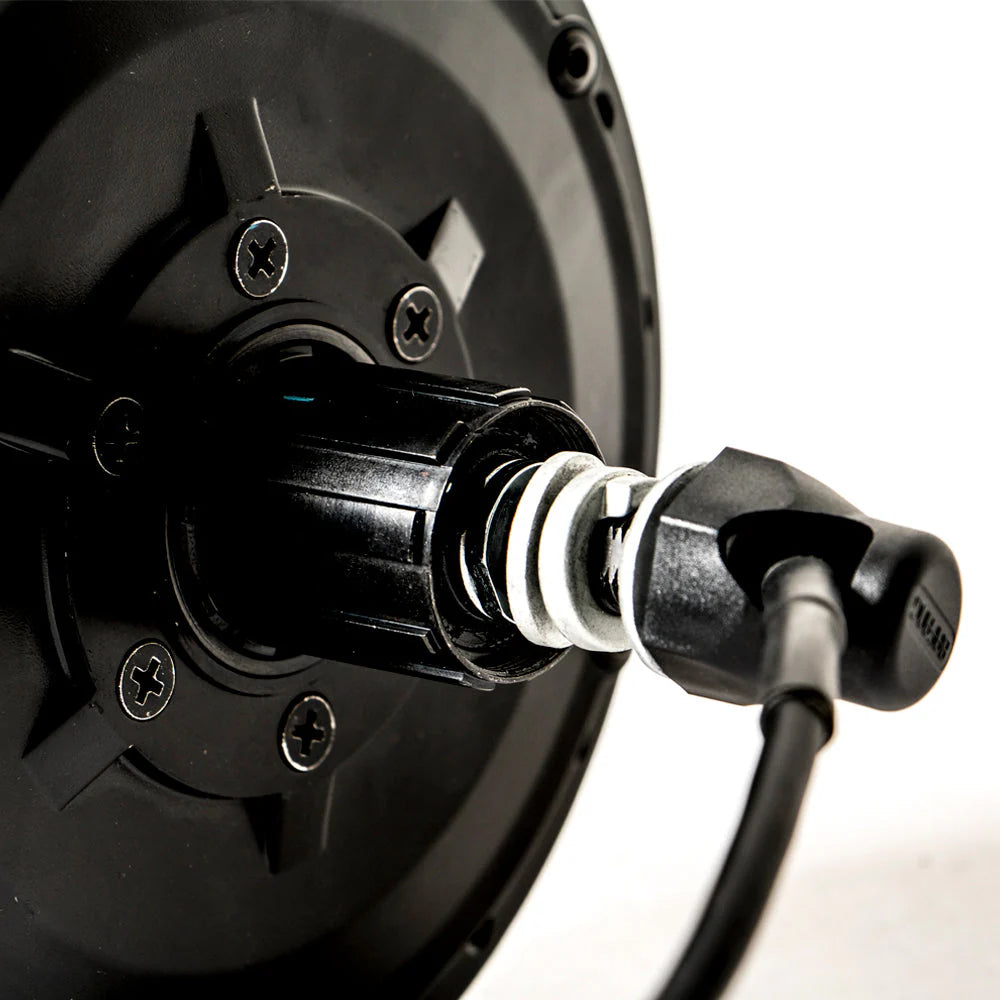

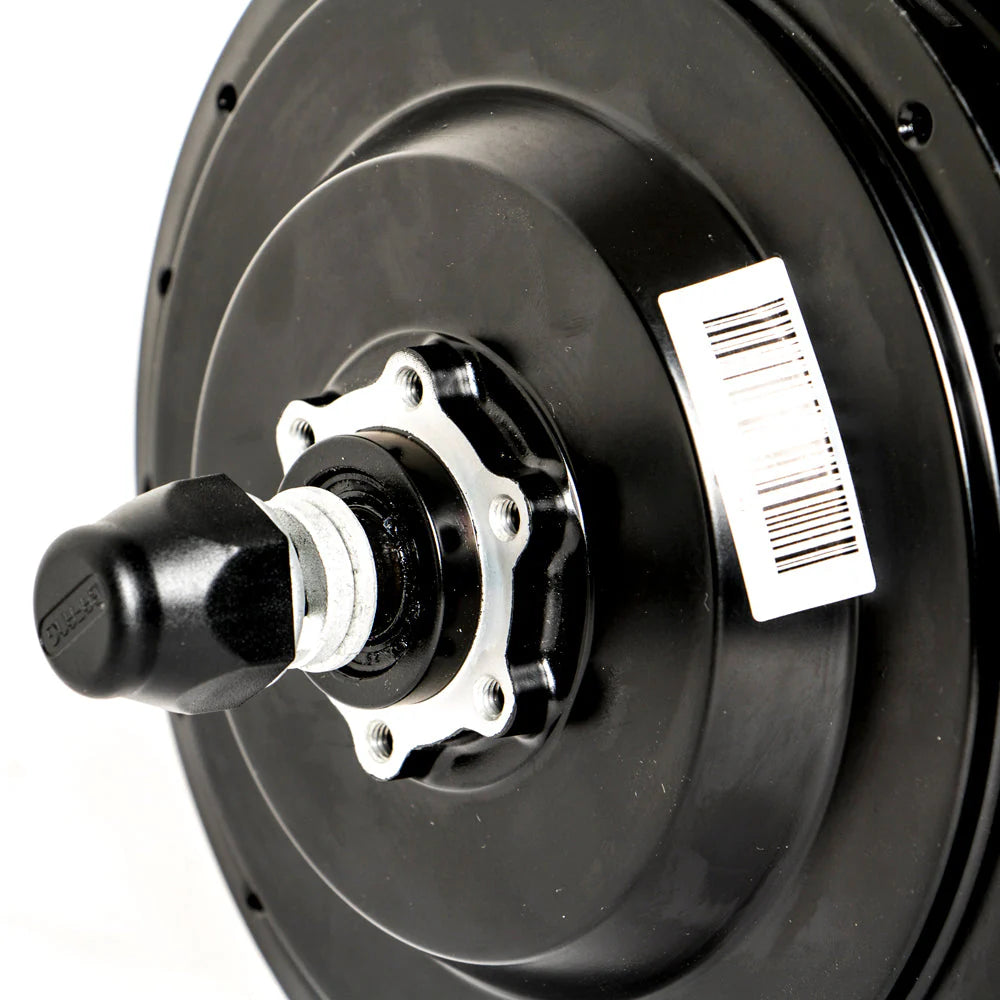

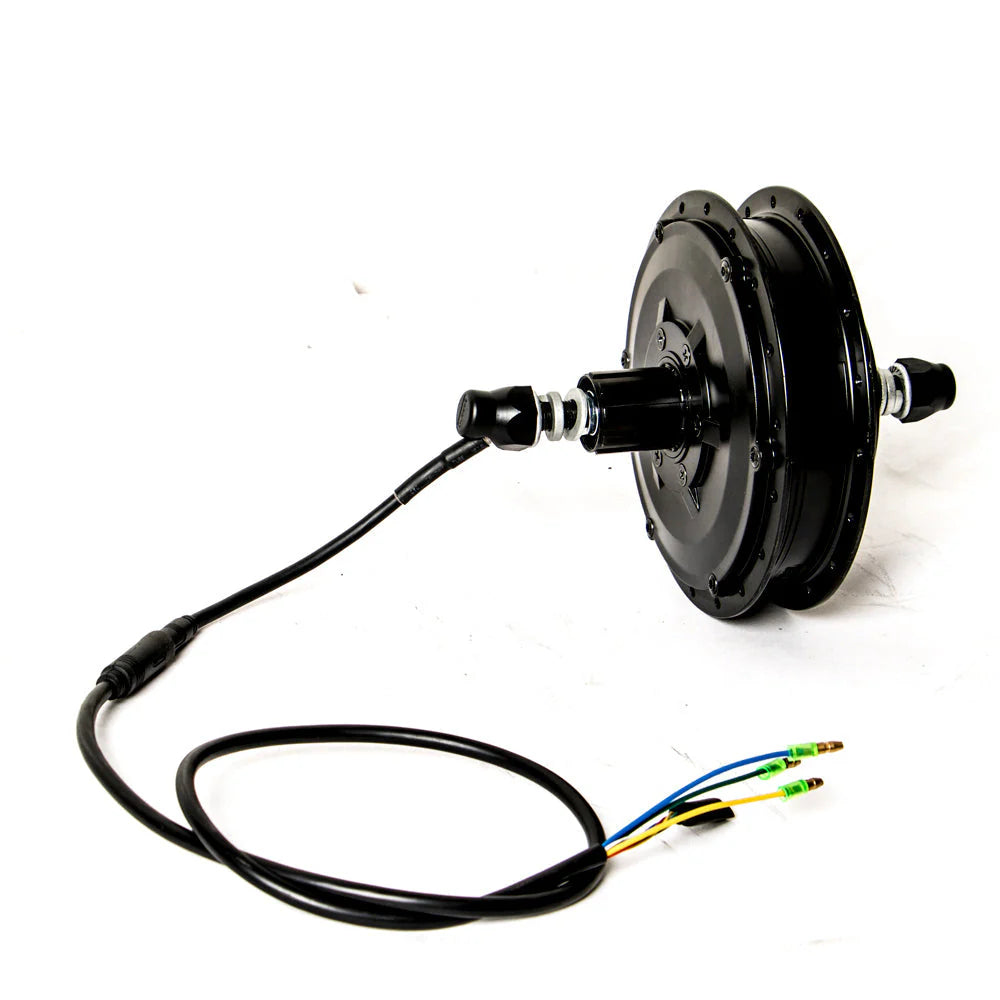

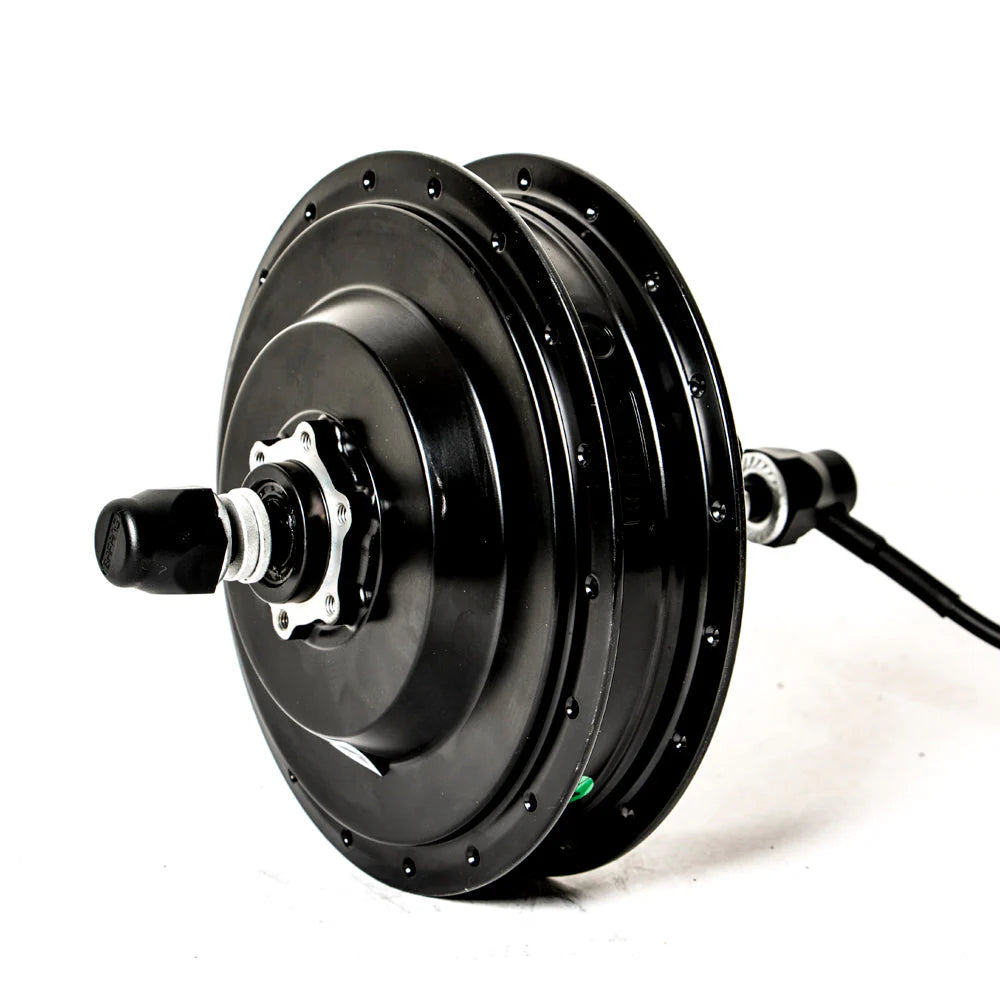

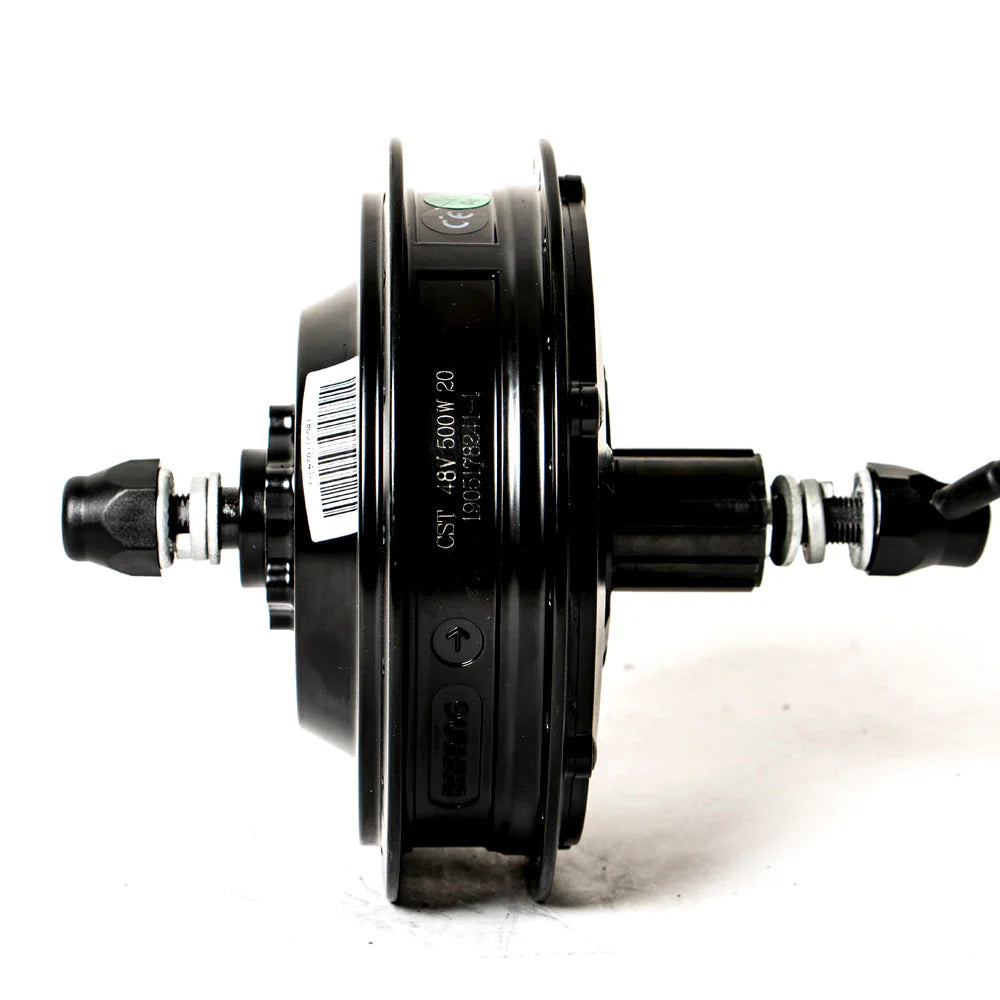

BAFANG Rear 48V500W CST Hub Cassette Motor

Technical Specifications

• Model: RM G020.500.DC

• Voltage: 48V

• Rated Power: 500W

• Maximum Torque: Up to 55 Nm

• Efficiency: ≥80%

• Motor Type: Brushless geared rear hub motor

• Dropout Width (OLD): 135mm

• Brake Compatibility: Disc brake

• Freewheel Compatibility: Cassette (up to 9-speed)

• Weight: Approximately 3.3 kg

• Spoke Holes: 36 holes, suitable for 13G spokes

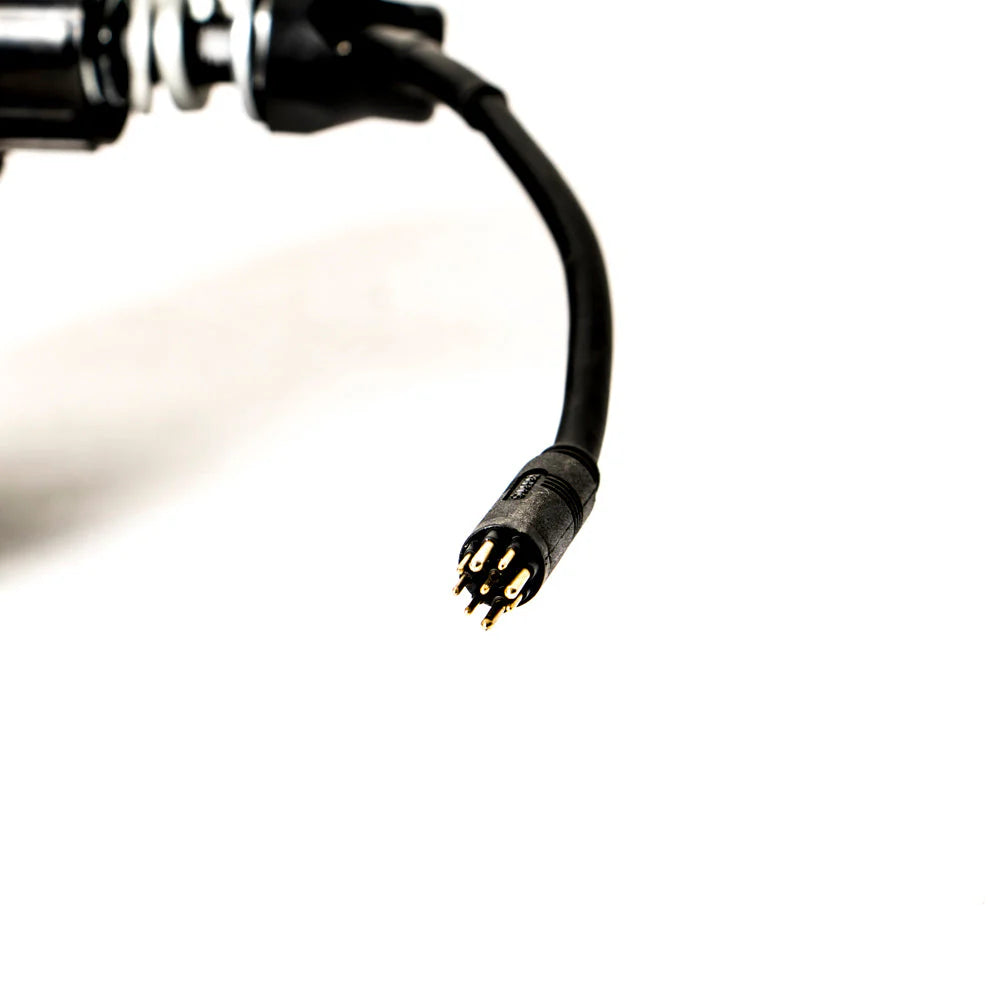

• Cable Routing: Shaft side, right

• Wheel Size Compatibility: 26", 27.5", 700C

Key Features

• High Torque Output: With a maximum torque of up to 55 Nm, this motor provides strong acceleration and climbing capabilities, enhancing the riding experience on various terrains.

• Efficient Performance: The motor boasts an efficiency of ≥80%, ensuring optimal energy utilization and extended battery life.

• Versatile Compatibility: Designed to fit standard 135mm rear dropouts and compatible with cassette freewheels up to 9-speed, making it suitable for a wide range of bicycle frames.

• Durable Construction: The brushless geared design reduces maintenance needs and increases the motor's lifespan, providing reliable performance over time.

This motor is ideal for riders seeking a balance between power and efficiency in their e-bike setup. Its compatibility with various wheel sizes and standard rear dropouts makes it a versatile choice for different bicycle types.
